EXYNOS7570 AI SPEAKER PROJECT






System Proposal(hw feature)



Classification

Component

Note

Remark



System

AP

SEC Exynos7570

14nm Quad core A53 1.4Ghz



MEMORY

SEC 16Gb LPDDR3 SDRAM

use eMCP(16+16) or((16+12))



SEC 4GB or 8GB e.MMC





Audio

Pre-processing DSP

Conexant CX20921

use Linkplay ASR_C02 module





Audio

Audio Amp

Bluesky TK0373E 2x4.5w 4Ω stereo



Codec

MV8064 or Internal audio codec



2Ch Speaker unit

2" (3W) stereo



Mic.

Analog MIC x 2

can support Analog or Digital MIC, and can change to MICx4



Connectivity

Bluetooth

Internal wifi/bt, RFIC S611B

BT4.2+BR/EDR+BLE



Wi-Fi

802.11 a/b/g/n/2.4Ghz/5Ghz Dual
Band







Video

Display

7" IPS Panel + CTSP

Resolution 1280x720, Brightness 250Cd/m2, view angle 160°

can change to 10.1", max resolution 1280x800

Camera

4EC 5M pixel (S-LSI SoC)

1/4“, FOV 67.79°, F2.2





mechatronics









Button

Power, Volume Up, Volume Down, ,
Mute, Reset

Android OS UX/UI physical button,
mute mic/camera

















Etc

Power

DC 5V 2A





Battery

3.7V

3600mAh



PMIC Power Management





LED

Mute, Processing request and others

One Mute indicator led, 8 RGB LEDs for indicator voice recognization&response



Charger

Yes





TF card socket

Push-Push Type





Sensor

Light/proximity

For auto backlight





System Proposal(SW feature)




Classification

Spec

Note

Remark

OS

Android

Android 7.0





Cloud Voice Service

Aamzon

Amazon Alexa AVS,Commercial Product Level Quality

Supporting smart speaker features based on AVS SDK



Google

Google Assistant,Commercial Product Level Quality

Supporting smart speaker features based on Google assistant SDK



Baidu(TBD)

Commercial Product Level Quality (Response Time and Far field length)

Supporting smart speaker features based on Baidu SDK



Far Field voice input processing



Yes, NR/EC/BF

Commercial Product Level Quality



Multimedia

Audio Supported Formats

MP3, AAC, AAC+, WMA, AMR-NB, AMR-WB, WAV, FLAC,
OGG, MID





Video Supported Formats

Playback: MKV, MOV, MP4, H.265(HEVC), AVI, WMV, TS, 3GP, FLV, WEBM





Image Supported Formats

Playback: JPEG, PNG, BMP Output: JPEG





Connectivity



Bluetooth

L2CAP, SDP, GAP, GATT, ATT, SM
AVCTP, AVDTP, BNEP, GAVDP, MCAP, RFCOMM, SPP
A2DP/AVRCP(source and sink), HFP, FTP, Low Energy







WiFi

Dual Band (2.4GHz/5GHz),HT40 (5GHz), Wi-Fi direct, Host APD (Master/Slave), WEP/WPA/WPA2/WPS





Application

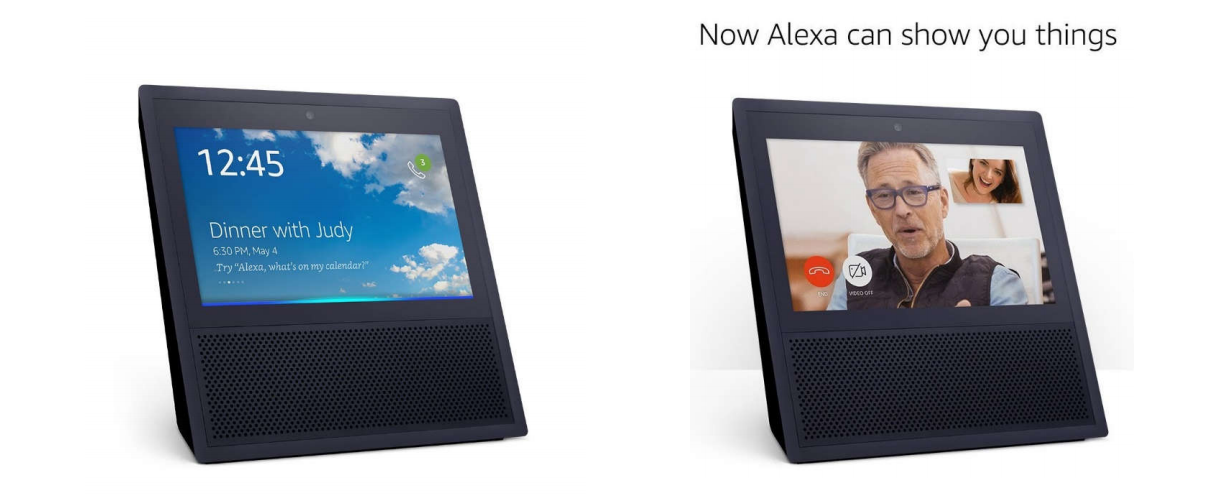

Amazon Echo Show APP

UI/UX porting and APP

Following AVS UX design guideline



Smart Speaker Launcher/APP

Smart Speaker Launcher





Settings





Voice control integrated

Voice Status Indication by animation



Google Assistant

Google Assistant APP





Baidu

BaiduSpeech APP







System Proposal(SW feature)



Music

amazon, spotify..

same to echo show





Video



same to echo show





Books



same to echo show





News



same to echo show





Calendar



same to echo show





To Do



same to echo show





Weather



same to echo show





Video or voice call



same to echo show





Smart Home



same to echo show





Timer



same to echo show





Movie showtimes



same to echo show





Shopping



same to echo show





Others skills



same to echo show

depend on different clound voice service



App



can install others app

TBD



LED indication



indication status

TBD



Face detection



recognization face

TBD



Voice detection



recognization voice

TBD



Play youtube





TBD



System setting



reference echo show&android setting

TBD



Don't disturb



Yes, refer echo show





OTA



Yes





Battery charger



Yes





Mute button



Mute/Unmute Mics and camera by mute key

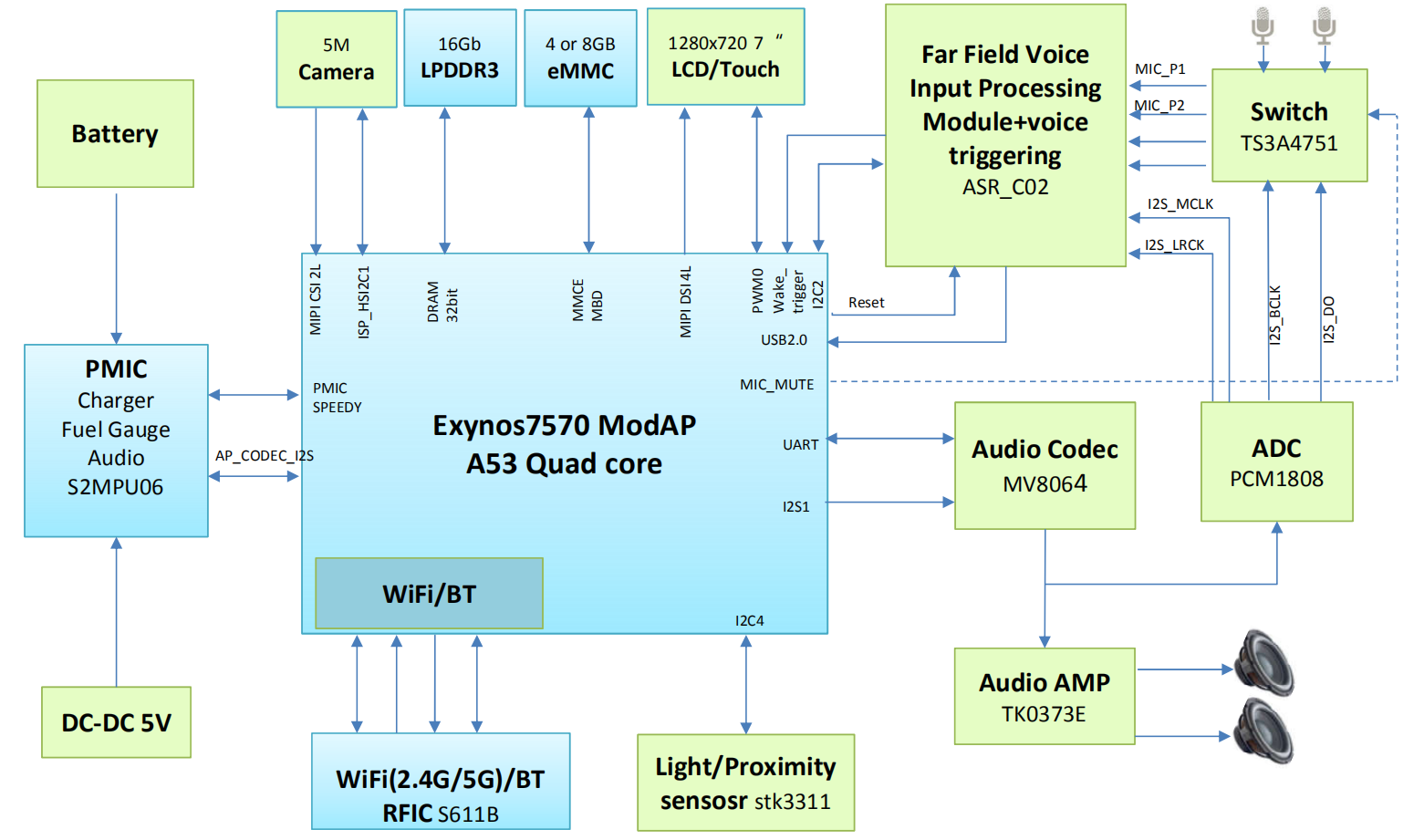

HW Blocks

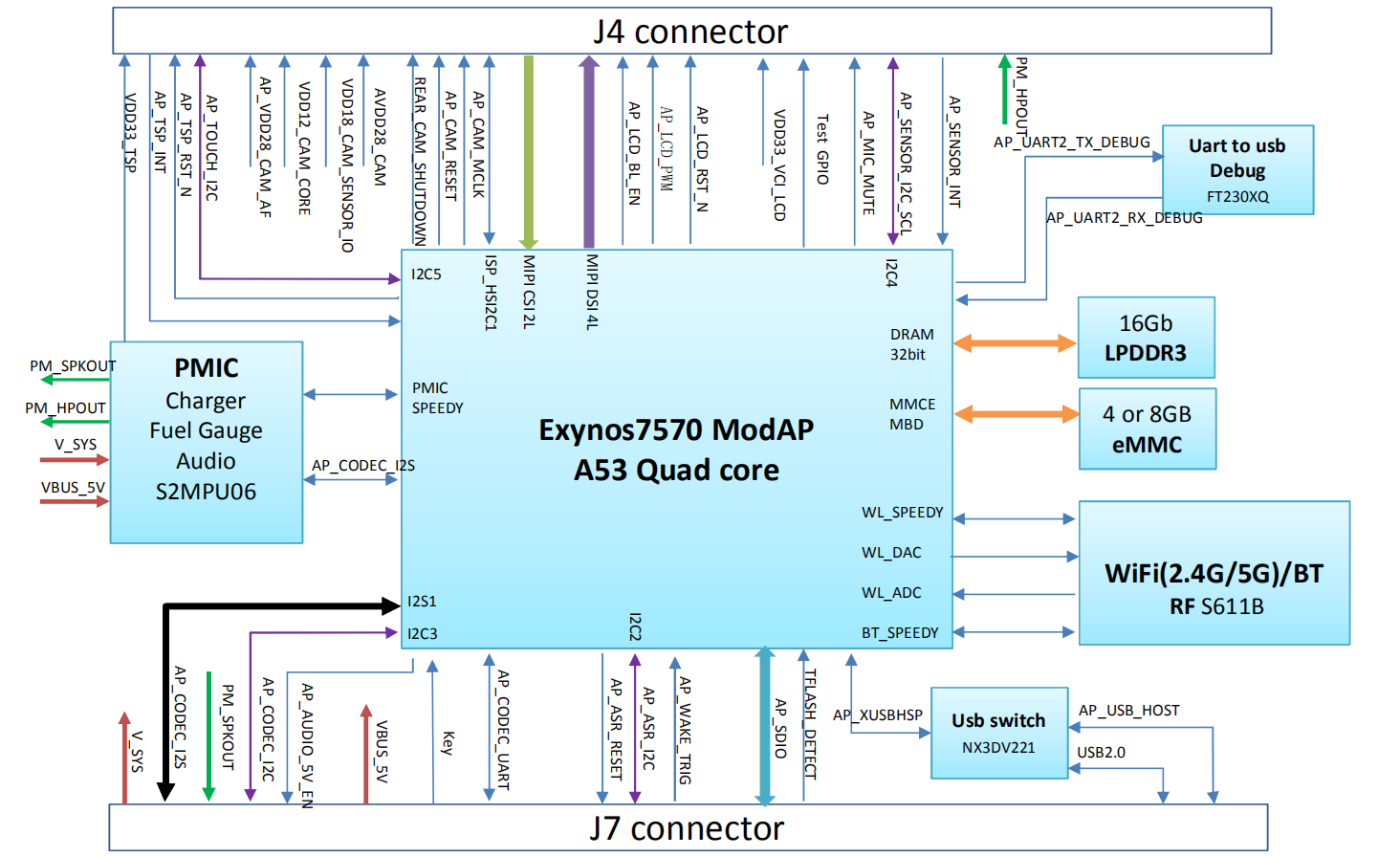

Core Board Blocks

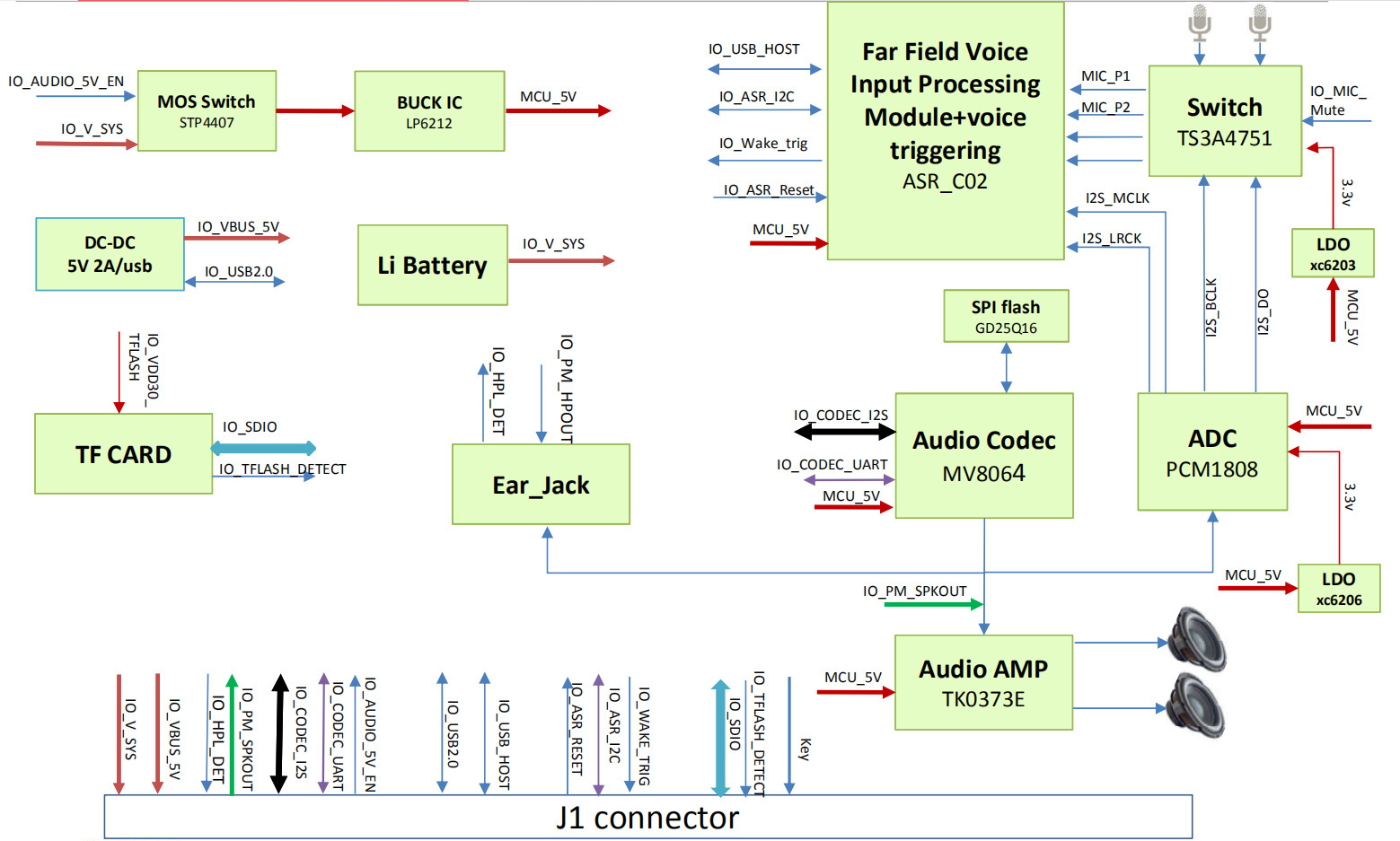

IO Base Board Blocks1







IO Base Board Blocks2
